Structure Type

Square box type   front-opening, floor-standing

Layout Form

Vertical

Applicable Objects

Pilot-scale stage   and industrial production

Application Fields

Vaccine,   pharmaceutical, bio-fermentation, blood products and other industries

Equipment Material

The parts in   contact with materials are made of 316L stainless steel

Separation Factor   Fr

19000xg

Motor Power

4 kw

Power Supply

AC380 50Hz

Equipment Weight

900 kg

Drum Inner Diameter

200 mm

Drum Rotation Speed

13000r/min

Solid Volume   Capacity

23 liters

Production Capacity

400 - 1500   liters/hour

Water Flow Capacity

2000 liters/hour

Liquid Outlet   Diameter

Outer diameter   38.1mm

Feed Inlet Diameter

Outer diameter   12.7mm

Overall Dimensions

700mm×1120mm×1680mm

Degree of   Automation

Continuous feed   liquid-solid clarification and separation

Cooling Coil

Stainless steel   coil, can pass -50°C refrigerant

Touch Screen   Frequency Conversion Control Assembly

Can display and   adjust the rotation speed

1

JM-23FC host

1

Shanghai Junmiao

Plate welding, heat treatment for stress relief twice to ensure the main box body never deforms. The main equipment can be used for more than 15 years.

2

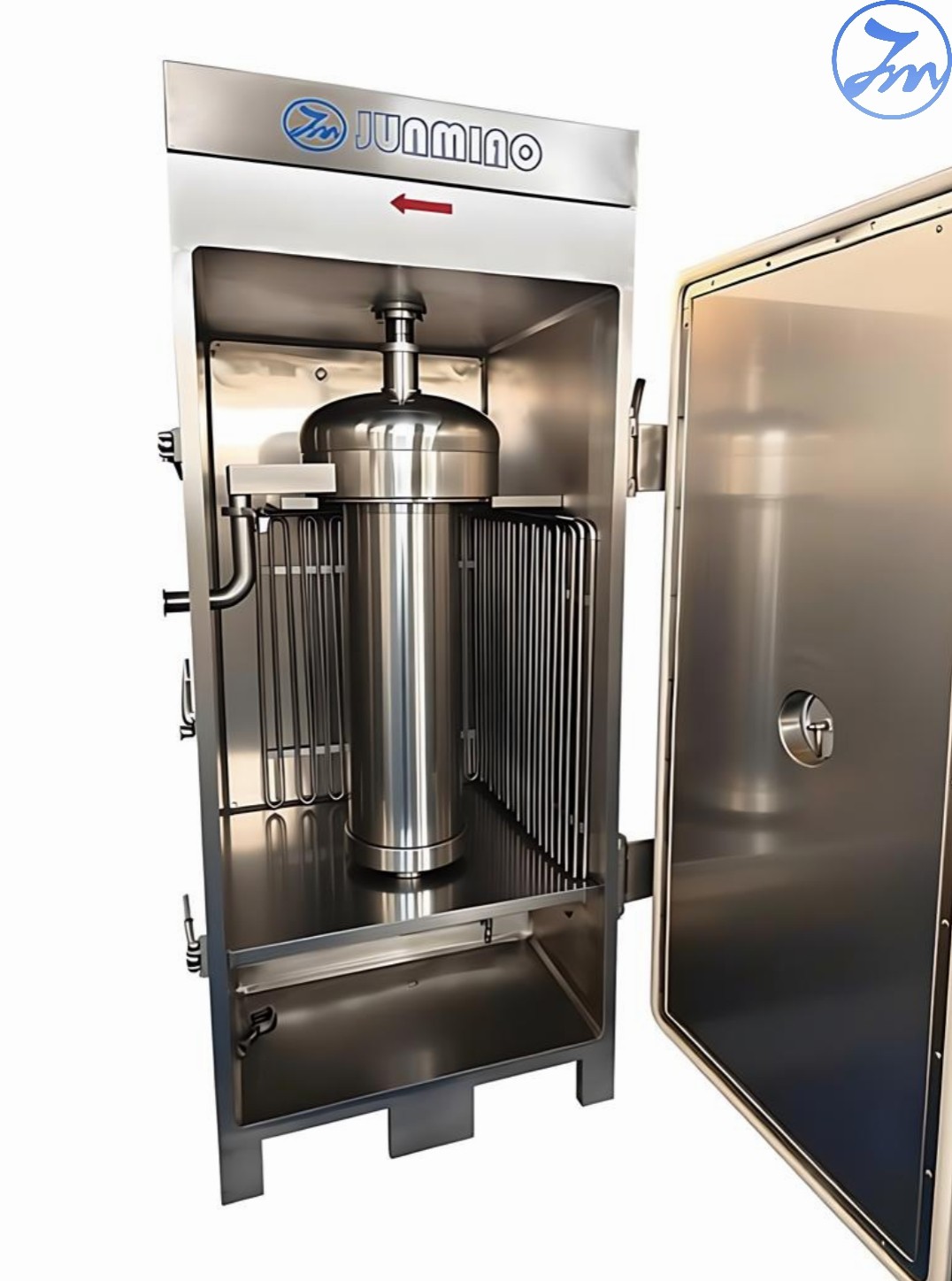

Drum

1

Shanghai Junmiao

All laser welding, internal polishing, each factory-produced drum has a flaw detection report. Stainless steel 316L.

3

Feed Pipe

1

Shanghai Junmiao

Stainless steel 316L

4

Liquid Collection Tray Assembly

1

Shanghai Junmiao

Stainless steel 316L

5

Machine Head, Spindle

1

Shanghai Junmiao

45# steel, 40 chromium, German FAG6204 bearing

6

Motor

1

Jiangsu Dazhong

Jiangsu Dazhong

7

Belt

1

Habasit

Habasit

8

Liquid Storage Tank

1

Shanghai Junmiao

Stainless steel 316L

9

Paint Cloth

2

Shanghai Junmiao

Polytetrafluoroethylene

10

M16 × 300 Anchor Bolt

4

Shanghai Junmiao

Stainless steel bolt
